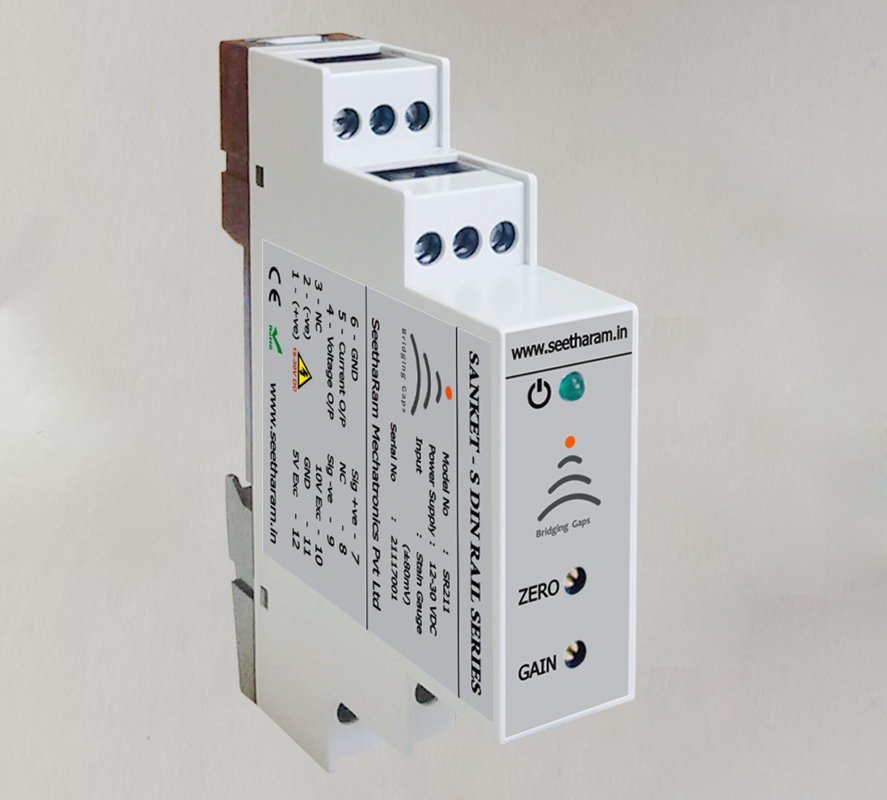

Sanket - S Din Rail conditioner amplify and condition all varieties of strain gage based
sensors, delivering highly accurate signal outputs. Sensors may be connected in 4-,
& 6-wire configurations. The modules offer adjustable excitation to energize load
cells. Current limiting provides extra protection.
FEATURES
1. Accepts signals from strain gages, load cells, torque Transducers and pressure
transducers.
2. 120 to 350Ω bridge resistance
3. User selectable sensor excitation 5V, 10V
4. Zero and span adjustment by trim pot
5. User selectable output options 0-5 V, 0-10 V and 4-20 mA
Sanket - S Din Rail conditioner amplify and condition all varieties of strain gage based
sensors, delivering highly accurate signal outputs. Sensors may be connected in 4-,
& 6-wire configurations. The modules offer adjustable excitation to energize load
cells. Current limiting provides extra protection.
FEATURES
1. Accepts signals from strain gages, load cells, torque Transducers and pressure
transducers.
2. 120 to 350Ω bridge resistance
3. User selectable sensor excitation 5V, 10V
4. Zero and span adjustment by trim pot
5. User selectable output options 0-5 V, 0-10 V and 4-20 mA
