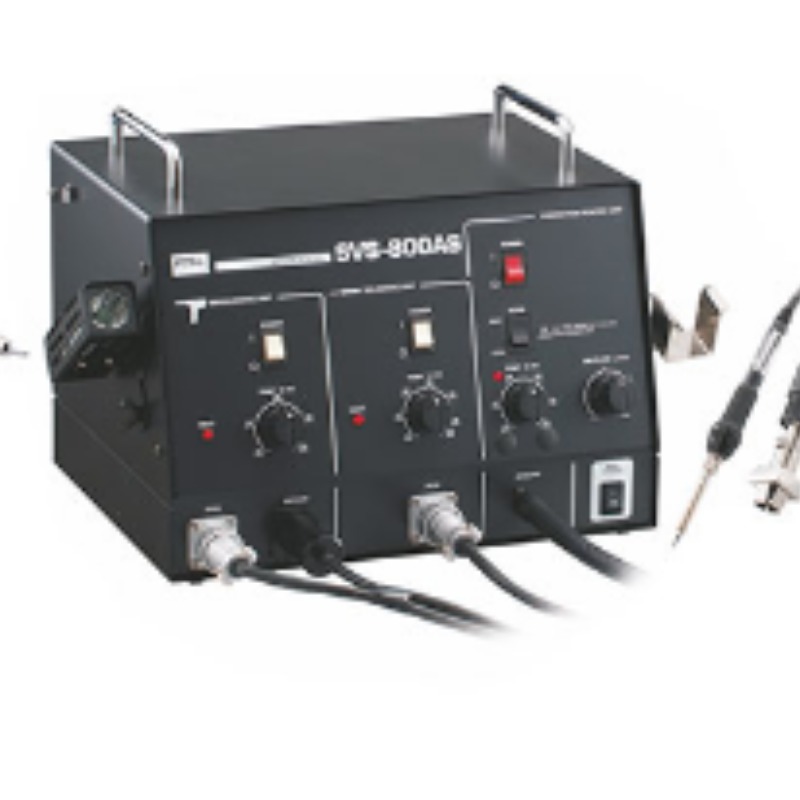

SERVICE STATION SVS-800AS REWORK UNIT
The temperature can be set to max 550C.
SOLDERING UNIT Good for a wide range of soldering work with 70W heater.
DESOLDERING UNIT Instant desoldering with open-valve mechanism.(Please refer to the next page.)
INDIVIDUAL POWER SWITCHES Along with the main power switch, there are switches for soldering, desoldering, and reworking. Independent Pumps Desoldering and reworking operate simultaneously 400% More Suction Capacity With open-valve mechanism Ceramic Heater with Internal Sensor A wide range for terminals, connectors and flat ICs (soldering & desoldering) Superior Temperature-Control Circuit To keep the temperature constant during desoldering Zero Volt Switch Circuit Reduces noise during heater ON/OFF OPEN-VALVE MECHANISM Two-stage trigger switch (PAT.P) Step 1 Pulling the trigger (lightly) activates the first stage switch. The pump starts, and the air pressure decreases in the vacuum chamber. Step 2 Next, pulling the trigger fully activates the second stage. The open-valve will open, and the solder is sucked up at once by the negative pressure in the vacuum chamber.
