$200
$300
Piece/Pieces
0 Review(s)
| Brand: | UTL |
| Output Voltage : | 380/400V +-1% |
| Power Factor : | 0.9 |
| Power Rating : | 5.25kVA |
| Output Power Factor: | 0.8 |
| DC Voltage: | 240V/360V |
| Voltage Range : | 300-480V Three Phase Four Wire |
| Frequency: | 50Hz +-10% |
| Charger Topology : | Buck |
| Connection Type: | Terminal Block |
| K Watt : | 5 |
| Switching Device : | IGBT |
| Switching Frequency : | 16KHz |
| Charge Controller: | One |
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Features :
Zero changes over time to ensure 100% uninterrupted power to all the applications.
The load will be driven by solar + Grid simultaneously giving maximum preference to solar.
DSP based design built-in MPPT solar charge controller.
Most advanced LCD features with AC & DC energy meters.
USB/Ethernet-based monitoring with 30 days of data storage.
Maximum preference for solar. PCU mode working.
The capability of a 100% panel rating.
Compatible with all PV arrays having different no. of cells.(36 cell/60 cell/72 cell)
Â

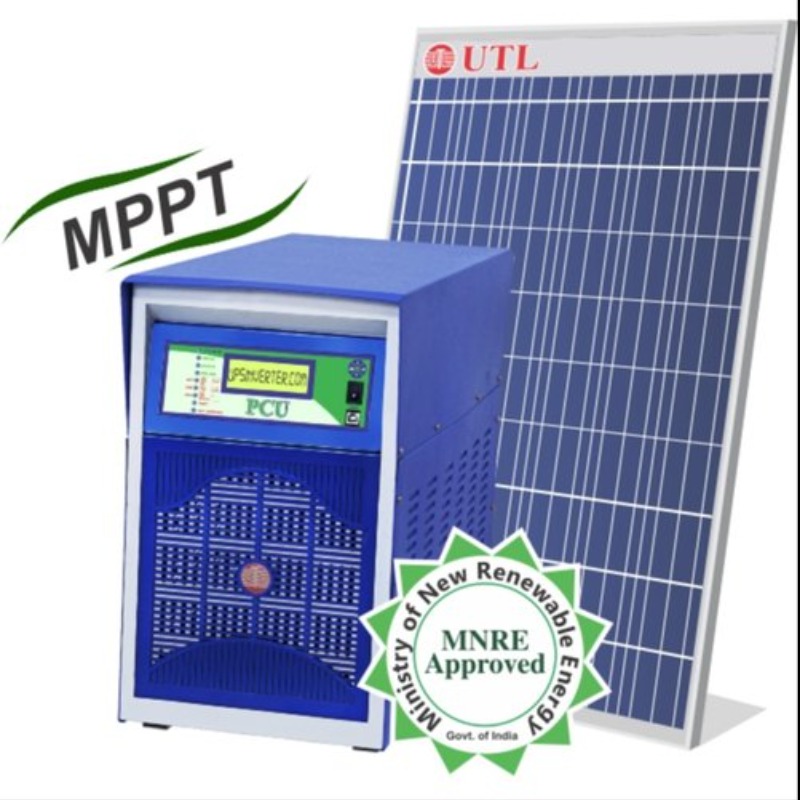

PCU is a Solar Power Conditioning Unit (PCU) which uses Solar energy (primary) and also the power from the grid (secondary), to charge the batteries. Since the usage of power from the grid is secondary, grid power is only used when solar energy is not present and the battery voltage level reduces to a certain level. Grid power is also needed when solar power is reduced to a certain level and battery voltage is reduced to a certain level.
